Technical Manual D 653/21a
This is an original German technical manual that includes a fold-out schematic of electrical systems related to the Ausf. E and F turret..
|
Picture 1

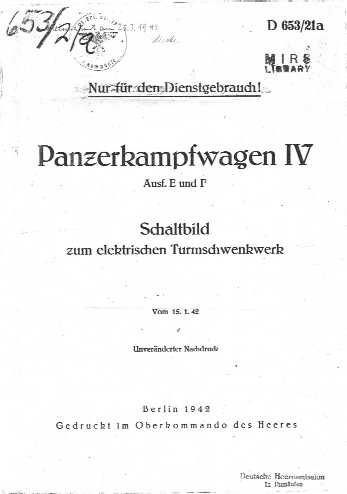

Title page. Rougly translated:
For official use only!
Panzerkampfwagen IV
Versions E and F
Wiring Schematic for the electrical turret systems
Of January 15, 1942
Unchanged Reproduction
Berlin 1942
Printed by the Supreme Command of the Army
|
|
|
Picture 2

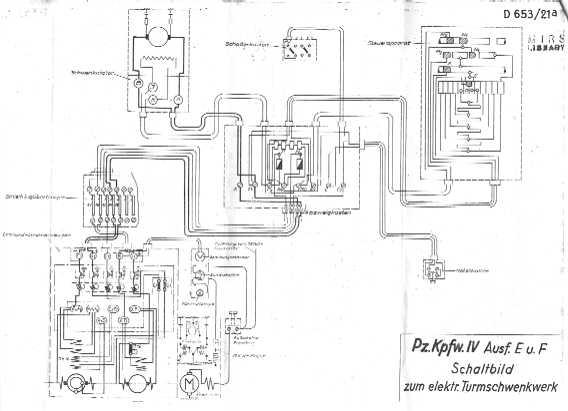

This gives a good overview of the schematic. Close-ups with readable captions follow.
|
Picture 3

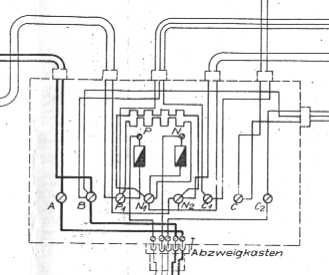

"Branch" box, or junction box.
|
Picture 4
Turret traverse motor.
|
Picture 5
Switch box.
|
|
